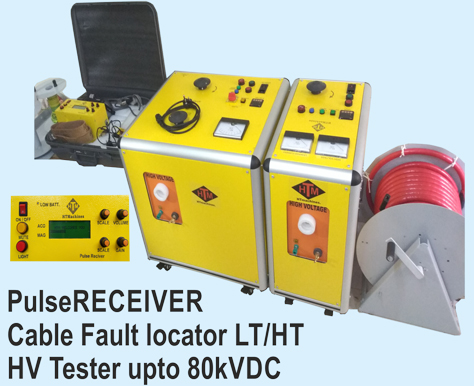

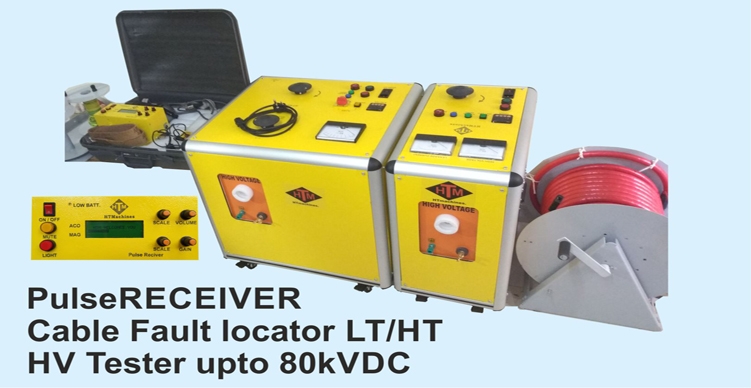

Cable Fault Locator Set

Specifications of Thumper Unit Thumper Output: 0-8,0-16,0-32 kVDC Selectable Range. Cap. Discharge: 0 - 32 kV @ 1600 joules every 3,4,6 secs TDR O/T:Internal arc reflection filter,Input: 220V, 50 Hz, 6A ,Size & weight: 550w x 620 x 570. W.- 110kg, Output Cables: 08 Sqmm of shielded HV Cable

Uses of the Thumper Unit ,The Thumper produces a capacitor discharge output of 0-32 kVDC @ 1600 joules. The thump voltage is variable from 0 – 32 kVDC. There is a Pulse and Continuous mode. The Pulse mode is used when TDR is connected and a single arc-over at the fault location is produced to reflect the signal to determine the distance to the fault. Once the fault is pre-located with the Distance Locator, the thumper is placed in the Continuous mode, where a discharge occurs every 3,4,6 seconds while workers try to precisely pinpoint the fault Using our Digital PulseReceiver .The Thumper produces a 32 kVDC @ 1600 joule discharge output. The 1600 joule rating of the Thumper is more than enough energy to easily locate faults.

Applications 440V – 33kV CABLE TESTING AND FAULT LOCTING • Pre-locate faults with Arc Reflection TDR • Pin point faults with Digital PulseReceiver • Pinpoint faults with continuous discharge • High Energy 1600joules
